This article was written and reviewed by Serge (MSc) . My academic background covers Biogeochemistry, Forest Science, Environmental Biology, and Plant Biology. My field research directly measured soil CO₂ flux and tree growth responses to warming and ozone in open-air experimental plots. I write evidence-based content on soil carbon, forest ecosystems, environmental monitoring, and bioenergy, grounded in real measurement experience, not secondary sources.

Affiliate disclosure: This site has affiliate links, including Amazon. As an Amazon Associate I earn from qualifying purchases, at no extra cost to you.

Posted in

Environmental Monitoring Systems: Tools, Fieldwork, and Data Execution.

Three weather station display units showing temperature, humidity and pressure readings, an example of the data side of an environmental monitoring system.

Three weather station display units showing temperature, humidity and pressure readings, an example of the data side of an environmental monitoring system.



Accurate environmental data depends on well-calibrated instruments and careful field methods.

In my field research on silver birch (Betula pendula), I ran an open-air experiment with 192 trees of two genotypes across eight plots. Infrared heaters warmed some plots by about 0.9°C, and an ozone system raised ozone in others.

The effects I was looking for were small: a few percent in tree height, and a 24 to 36% change in soil CO₂ release. Effects of that size only show up when the monitoring system behind them is planned and run with care.

Environmental monitoring is not just recording numbers. It needs structured systems, precise tools and consistent methods.

This article explains what an environmental monitoring system (EMS) is, the tools I used, how the fieldwork was organised and how the data were analysed, with the practical lessons I would pass on to anyone setting up a similar study.



What Is an Environmental Monitoring System (EMS)?

An environmental monitoring system combines hardware and software to measure environmental conditions automatically and repeatedly. It has three parts:

Sensors that measure air, soil, water or plant variables.

Data loggers that record those readings at set intervals and store them.

Software that collects, checks and summarises the data so trends can be compared.

The value comes from the combination. A sensor without a logger gives a reading only when someone is there to see it. A logger without a clear plan produces thousands of numbers that cannot answer a question.



The System I Used in My Silver Birch Study

My experiment combined automatic recording with hand measurements. The table shows what I measured, how, and how often.

What I measured How How often
Air temperature and humidity Sensors wired to the central logger Continuously
Wind speed and direction Anemometer and wind vane on the logger Continuously
Ozone concentration UV-based ozone analysers Continuously
Soil moisture Probes at a fixed depth in each subplot Continuously
Soil temperature Soil temperature probe With every soil CO₂ reading
Soil CO₂ efflux LI-COR 6400-09 soil chamber Monthly
Tree height and stem diameter Height measurement and vernier calipers Every three weeks
Leaf number and leaf area Counts and leaf scanner At set points in the season

Treatment levels were checked against the record rather than assumed. Ozone in the fumigated plots was raised to 33.4 ppb against 24.2 ppb in ambient air, and the continuous record is what confirmed the treatment was delivered through the season.

Precise experimental setup from my previous research, using infrared heaters to simulate +1°C of warming and study its impact on plant development.



How the Field Computer Tied It Together

All the sensors in the plots were wired to a computer in a small field cabin. Wired connections kept data transmission stable. That is important at a field site, where a dropped wireless signal leaves a gap in the record that cannot be filled later.

That setup did four jobs. It showed ozone levels and soil moisture as they happened, so a fault could be spotted the same day. It recorded continuously without anyone checking each sensor by hand. It stored the data safely until they were transferred for analysis. And once the data were downloaded, it made comparisons between treatments quick and consistent.



Essential Environmental Monitoring Tools

Atmospheric Tools

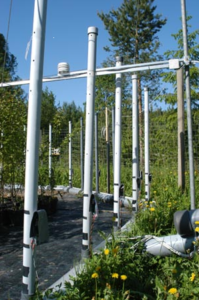

Ozone exposure systems (similar to FACE): released ozone into open-air plots, so the trees grew under raised ozone in otherwise natural field conditions.

Gas analysers: measured ozone and CO₂ to confirm the treatments and track air quality.

These tools showed that raised ozone reduced stem diameter growth in one of the two genotypes (gt14).

Soil and Terrestrial Tools

Soil CO₂ flux chambers (LI-COR 6400-09): measured the carbon dioxide released from the soil surface.

Soil probes: recorded temperature and moisture, the two variables that explain most of the short-term change in soil respiration.

These measurements showed that moderate warming increased soil CO₂ efflux by 24% in genotype gt14 and 36% in gt15.

Biological Tools

Vernier calipers: measured stem diameter at a marked point on each stem, so every reading hit the same spot as the last.

Leaf scanners and counts: tracked leaf number and total leaf area. Leaves were also dried at 60°C to get dry weight for specific leaf area.

These tools revealed genotype-specific responses: one genotype produced more leaves and grew more under warming, while the other responded differently.



Step-by-Step Guide to Environmental Monitoring in the Field

Reliable monitoring follows a fixed sequence. This is the workflow I used:

  1. Site selection: Plots were laid out so that both genotypes grew under every treatment, alongside untreated control plots for comparison.
  2. Instrument installation: Air, soil and ozone sensors in each plot were wired to the cabin computer. Soil moisture probes went in at the same depth in every subplot, and I marked the insertion depth on each cable before deployment.
  3. Calibration: Regular checks of sensor readings against reference values, because a sensor that drifts slowly gives no warning.
  4. Data collection: Loggers ran continuously, and hand measurements followed a fixed schedule: height and diameter every three weeks, soil CO₂ monthly, with every respiration reading paired with soil temperature and moisture.
  5. Maintenance: Sensors were cleaned, cables and batteries checked, and probe placement confirmed at each site visit.
  6. Recording: Hand measurements went on structured datasheets with columns for date, plot, tree ID, genotype and treatment.
  7. Data storage: Readings were transferred from the cabin computer to analysis software.
  8. Analysis: I tracked trends in growth, leaf area and soil CO₂ flux for each treatment and genotype.
  9. Reporting: The results were summarised to show the effect of warming and ozone on each genotype.



Data Analysis and Interpretation

Collecting data is only the first step. Repeated measurements under known conditions made four kinds of analysis possible:

Trend identification: following growth, leaf area and soil respiration through the season. Height under warming, for example, peaked about 9% above the controls in mid-season.

Comparisons: testing each treatment against the controls.

Genotype-specific responses: comparing the two genotypes under the same conditions.

Input for models: season-long patterns like these are what predictive models of ecosystem response are built on.

The clearest result was that temperature enhanced soil respiration more in gt15 than in gt14, showing that genetic differences shape how trees and their soils respond to stress. A one-off measurement would have missed this. It appeared only because the same plots were measured the same way through the season.



Common Challenges and How I Handled Them

Sensor drift: sensors were checked against reference values on a schedule, not only when a reading looked odd.

Weather: rain, wind and temperature extremes affect both instruments and people. My paper datasheets were hard to use on wet mornings, and if I ran the study again I would record on waterproof field paper from the start.

Placement: a soil probe installed slightly deeper in one plot than another adds variation that can hide a treatment effect. Marking insertion depth and checking it at each visit kept placement consistent.

Data gaps: wired connections and checks at every visit kept missing data to a minimum.

Complex interactions: temperature, ozone and genotype all affect each other, so the design included controls and both genotypes in every treatment.



Why Proper Tools and Methods Are Essential

Without the right tools, the effects in my study would have been lost:

Growth differences between genotypes were small enough that only consistent caliper measurements at marked points could detect them.

Soil CO₂ flux variations required repeated chamber measurements, each paired with soil temperature and moisture.

Ozone effects were clear only because the exposure system, wired sensors and repeated air measurements confirmed the treatment.

Proper systems and methodical fieldwork make data reliable enough to support conclusions about environmental stress and ecosystem response.



Conclusion

Environmental monitoring systems combine technology, field tools and structured methods to collect reliable data. My silver birch study showed that:

Accurate sensors and calibrated instruments are essential for detecting subtle ecological changes.

A monitoring system enables long-term, continuous recording of air, soil and plant responses.

Digital data management makes trend analysis and treatment comparisons possible.

Hands-on tools like calipers, leaf scanners and flux chambers capture fine-scale biological responses.

Less than one degree of warming was enough to change how much carbon the soil released. Only a well-planned monitoring system could show it.



FAQs

What is an environmental monitoring system (EMS)?

A system of sensors, data loggers, and software that continuously measures and records environmental conditions.

What are common environmental monitoring tools?

Includes gas analyzers, flux chambers, soil probes, leaf scanners, and calipers. Each measures specific air, soil, or biological variables.

How do computers help in environmental monitoring?

They store large datasets, detect trends, compare treatments, and model ecosystem responses.

How is environmental monitoring performed in the field?

Steps include site selection, sensor installation, wiring to computers, calibration, continuous measurement, data storage, analysis, and reporting.

Why is calibration important?

It ensures sensors provide accurate, reliable data, critical for long-term studies.

How does environmental monitoring support ecosystem management?

It detects early changes, measures treatment effects, and informs decisions like selecting resilient genotypes or predicting carbon flux changes.

Researcher | Environmental Biologist

I hold a BSc in Plant Biology and an MSc in Environmental Biology and Biogeochemistry. My field research measured soil CO₂ flux and tree growth responses to warming and ozone across open-air experimental plots. I specialise in forest carbon dynamics, soil biogeochemistry, and environmental monitoring.

At BioFluxCore I write evidence-based content grounded in real field measurement experience. Whether you are a researcher, a student, or simply curious about how natural systems work around you, my goal is to make environmental science clear, accurate, and useful at every level.
