Same feedstock. Same basic process. Completely different products.
That is what happens when you change the temperature and heating rate in a pyrolysis system. Slow pyrolysis and fast pyrolysis both heat biomass without oxygen. But the conditions under which they do it produce outputs so different that they are essentially separate technologies serving separate markets.
If you want biochar for soil carbon sequestration you want slow pyrolysis. If you want liquid bio-oil for fuel or chemical production you want fast pyrolysis. Get the conditions wrong and you end up with the wrong product mix for your application, wasting feedstock, energy, and money.
This article explains exactly how slow and fast pyrolysis differ, what each produces, when to use each, and why despite the promise of both technologies pyrolysis has not yet scaled to the mainstream bioenergy role many predicted.
What Is Slow Pyrolysis?
Slow pyrolysis is the original form of pyrolysis and the one humans have been using for centuries, even if they did not call it that. Traditional charcoal production is slow pyrolysis. Biomass heated slowly in a low oxygen environment over hours or days, producing a carbon-rich solid residue.
In modern slow pyrolysis systems the process operates at temperatures typically between 300 and 500°C with very slow heating rates of around 1 to 10°C per minute and long solid residence times that can range from minutes to hours. The extended time the biomass spends at temperature allows more complete carbonisation of the solid fraction.

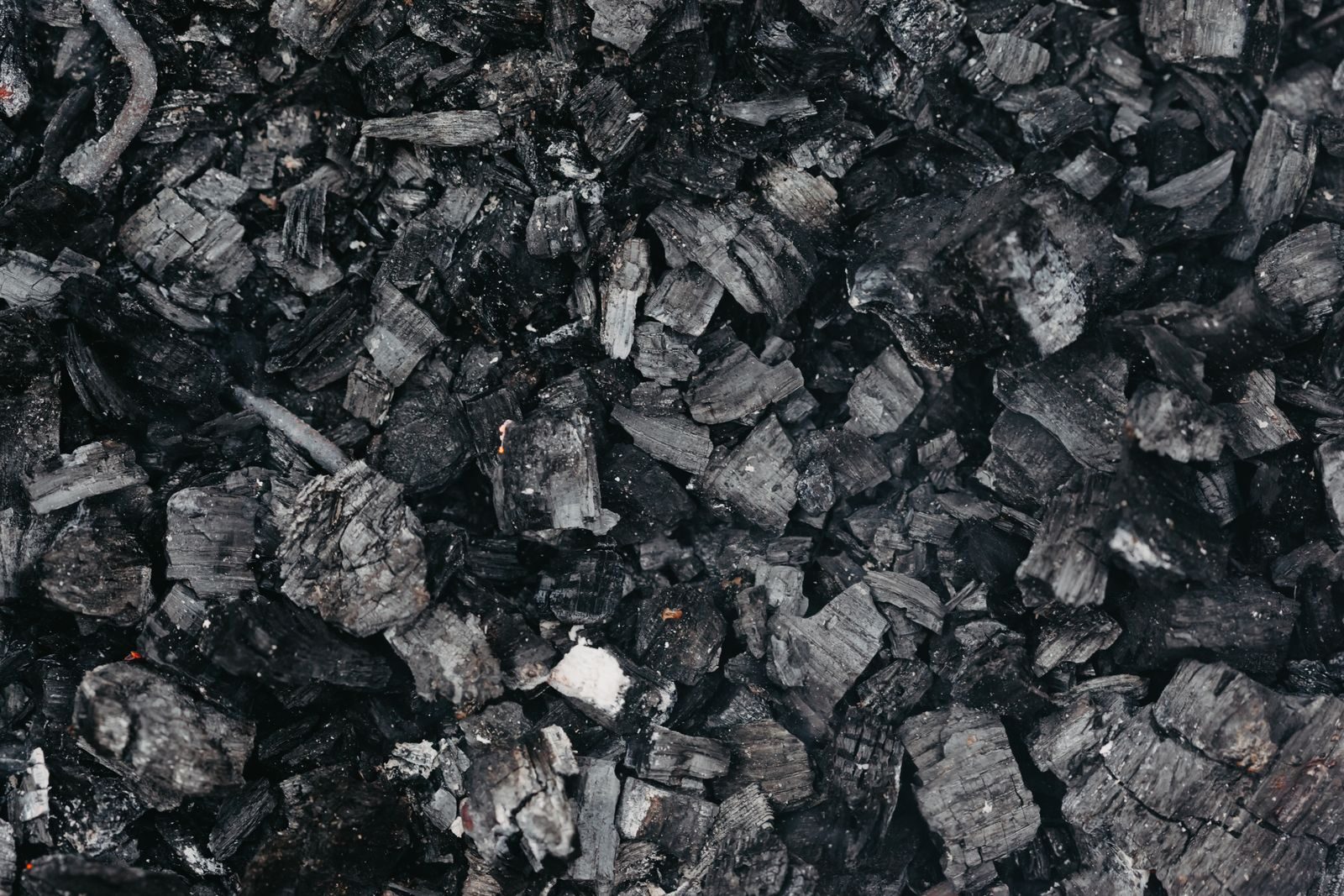

The primary product of slow pyrolysis is biochar. The slow heating rate and long residence time favour the formation of stable aromatic carbon structures in the solid fraction. Liquid bio-oil and syngas are also produced but in lower proportions than in fast pyrolysis. A typical slow pyrolysis process might produce 35 percent biochar, 30 percent bio-oil, and 35 percent syngas by mass depending on feedstock and exact conditions.
The biochar produced by slow pyrolysis has a higher carbon content and greater stability than biochar from fast pyrolysis because the extended residence time allows more complete thermal conversion of the organic material. This stability is what makes slow pyrolysis biochar particularly valuable for soil carbon sequestration and agricultural soil amendment applications.
What Is Fast Pyrolysis?
Fast pyrolysis is a more recently developed process designed specifically to maximise liquid bio-oil production from biomass. It achieves this by heating biomass extremely rapidly, cooling the resulting vapours immediately, and minimising the time the products spend at high temperature.
Fast pyrolysis operates at temperatures between 450 and 600°C with heating rates of 10 to 200°C per second and very short solid residence times of typically less than two seconds. The biomass particles must be small, usually less than 3 millimetres, to ensure rapid and uniform heat transfer throughout the material.
The rapid heating volatilises the organic compounds in the biomass before they have time to undergo secondary reactions that would convert them to char or gas. The vapours are then rapidly quenched in a condenser, typically within one to two seconds, to prevent further thermal cracking that would break the larger organic molecules into smaller gas-phase compounds.
The primary product of fast pyrolysis is bio-oil, which typically represents 60 to 75 percent of the product yield by mass. Biochar accounts for around 15 to 25 percent and syngas for 10 to 20 percent. The bio-oil from fast pyrolysis is a complex mixture of hundreds of oxygenated organic compounds and has an energy density roughly half that of conventional petroleum diesel.
Key Differences Between Slow and Fast Pyrolysis
The differences between the two processes go beyond just temperature. Here is a direct comparison across the parameters that matter most.
A review published in IOP Science confirms that fast pyrolysis targets bio-oil yields of up to 60 to 70 percent by weight while slow pyrolysis targets biochar yields of up to 60 percent by weight with 25 to 30 percent bio-oil and the balance as gas. Those numbers alone tell you the two processes are serving completely different purposes.
Temperature: Slow pyrolysis typically operates between 300 and 500°C. Fast pyrolysis operates between 450 and 600°C. There is some overlap in the temperature ranges but the heating rate and residence time are more important than the peak temperature in determining the product distribution.
Heating rate: Slow pyrolysis uses heating rates of 1 to 10°C per minute. Fast pyrolysis uses heating rates of 10 to 200°C per second. That is a difference of roughly 1000 times in how quickly the biomass reaches its target temperature. This is the single most important variable separating the two processes.
Residence time: Slow pyrolysis keeps the biomass at temperature for minutes to hours. Fast pyrolysis processes the solid in seconds and quenches the vapours within one to two seconds of formation.
Primary product: Slow pyrolysis produces primarily biochar. Fast pyrolysis produces primarily bio-oil.
Feedstock preparation: Slow pyrolysis can handle larger particle sizes and higher moisture contents. Fast pyrolysis requires fine grinding to particles under 3 millimetres and drying to below 10 percent moisture to achieve the rapid heat transfer the process depends on.
Reactor complexity: Slow pyrolysis reactors are simpler and more robust. Fast pyrolysis reactors require more sophisticated design to achieve the rapid heating and quenching the process demands.
Scale and cost: Slow pyrolysis systems are generally cheaper to build and operate at small to medium scale. Fast pyrolysis systems have higher capital costs but produce a more valuable liquid product that can command higher market prices.
How Does Temperature Affect Biochar Properties?
This question matters whether you are running slow or fast pyrolysis because the temperature at which pyrolysis occurs directly determines the chemical and physical properties of the biochar produced.
At lower pyrolysis temperatures between 300 and 400°C the biochar retains more of the original organic functional groups from the biomass. It has higher oxygen and hydrogen content, higher cation exchange capacity, and is more reactive with soil chemistry. This type of biochar is often better for nutrient retention in agricultural soils.
At higher pyrolysis temperatures between 500 and 700°C the biochar becomes more graphitic and aromatic. It has higher carbon content, greater stability against microbial decomposition, higher surface area, and better performance as an adsorbent for contaminants. This type of biochar persists longer in soil and provides more reliable long-term carbon sequestration.
A review published in IOPscience comparing slow and fast pyrolysis of lignocellulosic and lignin-based feedstocks confirms that feedstock composition, temperature, and heating rate all significantly affect the quality and properties of the resulting biochar, with higher temperatures and faster heating rates producing more graphitic and stable char with greater surface area.
The relationship between pyrolysis temperature and biochar properties connects directly to what I studied in my Biogeochemistry courses about organic matter stability in soil. The same principles that explain why some organic carbon fractions persist in soil for centuries and others decompose in years also explain why high temperature biochar is more stable than low temperature biochar.
Aromatic ring structures resist both biological and chemical breakdown regardless of whether the degrading agent is a soil microbe or the passage of time.
For a researcher or land manager choosing a pyrolysis system with biochar as the target product, understanding this temperature-property relationship is essential for matching the biochar to the intended application.
Why Is Pyrolysis Not Widely Used?
This is a question worth asking directly because pyrolysis has been researched extensively for decades and yet it remains a niche technology rather than a mainstream bioenergy pathway. Several factors explain the gap between potential and reality.
The bio-oil problem.
Fast pyrolysis bio-oil is chemically complex, highly oxygenated, acidic, and unstable in storage. It separates into phases over time, corrodes metal components, and cannot be used directly in most existing fuel infrastructure without significant upgrading. The cost of upgrading bio-oil to a stable usable fuel often undermines the economic case for fast pyrolysis at commercial scale.
Energy and capital costs.
The high temperatures required for pyrolysis and the energy needed to dry and size-reduce feedstock before processing make the energy balance of pyrolysis systems sensitive to feedstock quality and local energy prices. Building a pyrolysis plant requires significant capital investment before any product is sold.
Feedstock supply chains.
Biomass is bulky, variable in composition, and expensive to transport. Building a reliable supply chain of consistent quality feedstock to a centralised pyrolysis facility is a logistics challenge that adds cost and complexity.
Environmental concerns.
The volatile organic compounds and nitrogen oxides produced during pyrolysis can contribute to ground-level ozone formation if emissions are not properly controlled. As I explained in my article on what pyrolysis is and how it works, this is one of the environmental concerns I take seriously as someone who measured ozone effects on forest trees directly in field research. For forests already under ozone stress, any industrial process contributing additional VOC emissions deserves careful environmental assessment before deployment at scale.
My concern about these emissions was also shaped by studying environmental chemistry and air quality under researchers whose work focused on industrial combustion emissions and their atmospheric and health effects. That background makes me look at pyrolysis not just as an energy technology but as an emissions source requiring the same level of scrutiny as any other industrial process.
Regulatory complexity.
The multiple product streams from pyrolysis, bio-oil, biochar, and syngas, each face different regulatory frameworks depending on how they are classified and used. Navigating those frameworks adds cost and uncertainty for project developers.
Product quality variability.
From my Quality Control of Chemical and Environmental Measurements training, one of the clearest challenges with pyrolysis is that the outputs are not standardised products. Bio-oil composition varies with feedstock and conditions. Biochar properties depend on temperature and residence time. Syngas composition fluctuates with process variables. Every batch requires quality assessment before the products can be sold or used reliably. That variability is a genuine barrier to commercial scale confidence in pyrolysis outputs.
None of these barriers are insurmountable. But together they explain why pyrolysis remains at pilot and demonstration scale in most markets rather than operating at the commercial scale its technical potential suggests.
Is Pyrolysis Dangerous?
Any process operating at temperatures between 300 and 700°C with combustible gases and unstable liquids as products requires serious attention to safety. Pyrolysis is not uniquely dangerous compared to other industrial thermochemical processes but it does present specific hazards that need to be managed.
Syngas contains carbon monoxide which is toxic at low concentrations and flammable across a wide range of mixtures with air. Handling and using syngas safely requires leak detection systems, proper ventilation, and carefully designed combustion equipment.
Bio-oil is corrosive, has a low flash point, and contains compounds that are irritating or toxic on skin contact or inhalation. Handling bio-oil requires appropriate personal protective equipment and storage in corrosion-resistant containers.
The volatile organic compounds released during pyrolysis present both health and environmental risks if not properly captured and treated.
My Quality Control of Chemical and Environmental Measurements training emphasised that controlling and verifying emissions from chemical processes is not optional. It is the foundation of responsible operation. A pyrolysis facility without rigorous emissions monitoring and control is not just an environmental problem. It is a regulatory and liability problem too.
Properly designed and operated pyrolysis systems manage all of these hazards effectively. The risks are real but they are manageable with the right engineering and operational protocols.
When Is Pyrolysis Used?
Understanding when pyrolysis is the right technology choice requires matching the technology to the application rather than treating pyrolysis as a universal solution.
Slow pyrolysis is the right choice when biochar is the primary target product. Applications include agricultural soil amendment for improved water retention and nutrient holding, remediation of contaminated soils using biochar’s adsorptive properties, and long-term carbon sequestration where biochar stability in soil is the primary value.
Fast pyrolysis is the right choice when liquid bio-oil is the primary target product. Applications include renewable chemical feedstock production, co-firing with fossil fuels in existing power generation infrastructure, and as a feedstock for further upgrading to transportation fuels.
Both types are appropriate for waste biomass valorisation where the goal is volume reduction and energy recovery from materials that would otherwise go to landfill or release methane during decomposition.
Neither type is a drop-in replacement for conventional fossil fuel infrastructure without significant product upgrading and system adaptation. That is an important distinction that is often lost in optimistic assessments of pyrolysis potential.
Frequently Asked Questions
What is the difference between slow and fast pyrolysis?
The key differences are heating rate and primary product. Slow pyrolysis heats biomass at 1 to 10°C per minute and produces primarily biochar. Fast pyrolysis heats biomass at 10 to 200°C per second and produces primarily bio-oil. Both operate without oxygen but the conditions produce fundamentally different product distributions.
What temperature does fast pyrolysis use?
Typically between 450 and 600°C with very rapid heating rates and short residence times of less than two seconds. The rapid heating and immediate quenching of vapours maximises bio-oil yield by preventing secondary reactions that would convert liquid products to char or gas.
What is the heating rate of slow pyrolysis?
Between 1 and 10°C per minute, sometimes slower. This is roughly 1000 times slower than fast pyrolysis. The slow heating rate favours the formation of stable aromatic carbon structures in the solid fraction, maximising biochar yield and quality.
How does pyrolysis temperature affect biochar properties?
Lower temperatures between 300 and 400°C produce biochar with more organic functional groups, higher nutrient retention capacity, and greater reactivity with soil chemistry. Higher temperatures between 500 and 700°C produce more graphitic, stable, high surface area biochar that persists longer in soil and performs better as an adsorbent.
Why is pyrolysis not widely used?
Several factors limit commercial scale adoption including bio-oil instability and high upgrading costs, high capital and energy costs, feedstock supply chain challenges, environmental concerns around VOC and nitrogen oxide emissions, product quality variability, and complex regulatory frameworks for multiple product streams.
Is pyrolysis dangerous?
It involves high temperatures, combustible syngas, corrosive bio-oil, and volatile organic compounds. These hazards are manageable with proper engineering and emissions control systems but require serious attention. A properly designed and operated pyrolysis facility manages these risks effectively through leak detection, ventilation, corrosion-resistant materials, and rigorous emissions monitoring.
What is the best pyrolysis technology?
There is no single best technology. The right choice depends on the target product. Slow pyrolysis is best for biochar production. Fast pyrolysis is best for bio-oil production. The optimal technology is the one that best matches the available feedstock, target product, and local market conditions.
